【How-to】How to read an engineering scale

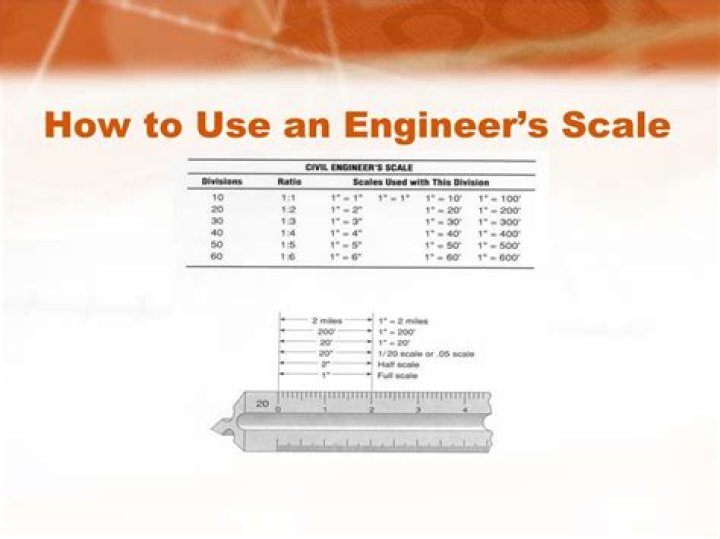

Engineers Engineering Scales units of measure are equal to parts per inch and parts per foot. The most common graduations are 10, 20, 30, 40, 50, 60 parts per inch, but there are scales available that have 100, 200, 300, 400, 500, 600 parts per foot. The graduations vary based on the application.
